This rubber insulated cable ist designed for application in buses and railborn vehicles. If used in distribution or switching appliances up to 1000 V, it is considered to be short circuit proof. The cable is ozon resistant, halogen-free, flameretardant
and resistant against most oils and grease.

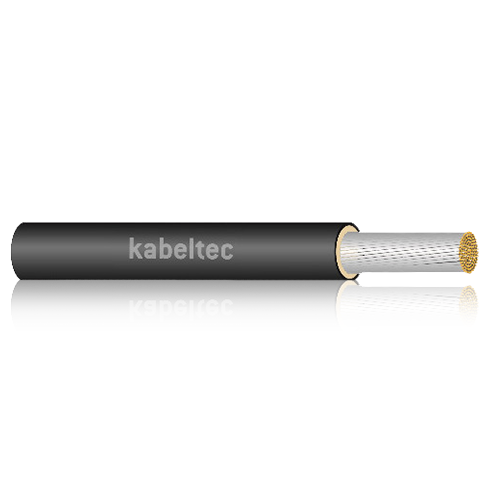

NSHXAFOU
FRNC rubber cable acc. to VDE 0250 T. 606
CONSTRUCTION:
- Bare or tinned, fine stranded copper wires
- Core insulation made of halogen-free polymer compound
- Oil-resistant and flame-retardant
- Outer sheath: halogen-free polymer compound
- Colour black
- Class 5 = fine stranded
TECHNICAL DATA:
| Conductor Material | Copper, bare or tinned |
| Conductor class | Class 5 |
| Core insulation | EPR 3GI3, halogen-free |
| Core identification | |
| Stranding | |
| Outer sheath | FRNC compound |
| Sheath colour | Black |
| Rated voltage [V] | 1800 / 3000 |
| Testing voltage [V] | 6000 |
| Conductor resistance | |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 10 x d |
| Working temp fixed min/max [C] | -40°C up to +70 |
| Working temp moved min/mac [C] | -25°C up to +70 |
| Temp at conductor max. | +90°C |
| Burning behaviour | VDE 0482-332-1-2 / IEC 60332-1 |
| Approvals | VDE 0250 T. 606, EN 60811-2-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 64010150H | 1 x 1.50 1,8/3 kV SW | 7.00 | 1.44 | 6.00 |
| 64010250H | 1 x 2.50 1,8/3 kV SW | 7.50 | 2.40 | 7.00 |
| 64010400H | 1 x 4 1,8/3 KV SW | 9.00 | 3.84 | 8.50 |
| 64010600H | 1 x 6 1,8/3 kV SW | 9.50 | 5.76 | 11.00 |
| 64011000H | 1 x 10 1,8/3 kV SW | 11.00 | 9.60 | 16.00 |
| 64011600H | 1 x 16 1,8/3 kV SW | 13.00 | 15.36 | 24.00 |
| 64012500H | 1 x 25 1,8/3 kV SW | 15.00 | 24.00 | 36.50 |
| 64013500H | 1 x 35 1,8/3 kV SW | 16.50 | 33.60 | 49.40 |
| 64015000H | 1 x 50 1,8/3 kV SW | 18.00 | 48.00 | 65.60 |
| 64017000H | 1 x 70 1,8/3 kV SW | 20.50 | 67.20 | 88.00 |
| 64019500H | 1 x 95 1,8/3 kV SW | 24.00 | 91.20 | 109.00 |
| 640112000H | 1 x 120 1,8/3 kV SW | 25.10 | 115.20 | 134.00 |
| 640115000H | 1 x 150 1,8/3 kV SW | 28.00 | 144.00 | 164.00 |
| 640118500H | 1 x 185 1,8/3 kV SW | 31.00 | 177.60 | 216.00 |
| 640124000H | 1 x 240 1,8/3 kV SW | 34.50 | 230.40 | 257.00 |
| 640130000H | 1 x 300 1,8/3 kV SW | 38.00 | 289.00 | 347.00 |
| 640140000H | 1 x 400 1,8/3 kV SW | 40.10 | 384.00 | 418.00 |
| 640150000H | 1 x 500 1,8/3 kV SW | 42.10 | 480.00 | 586.00 |
