For the connection of mobile equipment, motors and machines when exposed to extreme mechanical strain. Suitable for use in moist and dry rooms and for outdoor and fixed surface installation. The cable is UV resistant. Employed in tunnelling, in mining, quarries, etc.

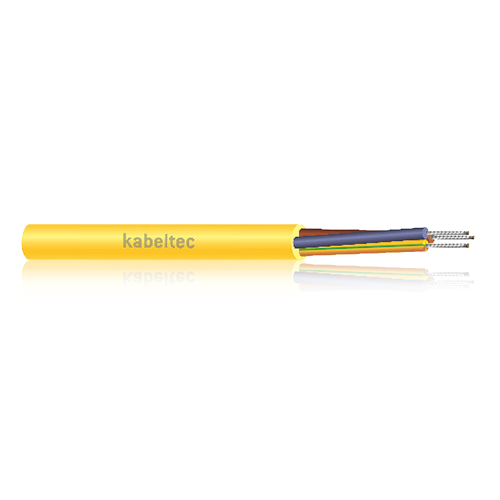

NSSHOU-O/-J
Heavy rubber cable acc. to VDE 0250
CONSTRUCTION:
– structure according to VDE 0295, class 5 or IEC 228 class 5
– core insulation made of EPR 3GL3, in accordance to VDE 0207 part 20
– core marking:
NSSHÖU-O: black single cores
NSSHÖU-J: up to 5 cores colour coded in according to VDE 0293 7 cores and over black with printed consecutive number coding
– earth conductor green/yellow
– cores twisted in layers
– inner sheath made of rubber
– tinned copper conductor
– outer sheath made of polychloroprene 5GM5 in accordance to VDE 0207 part 21, oilresistant
– sheath colour yellow with type marking
TECHNICAL DATA:
Conductor Material: Copper, tinned
Conductor class: Class 5 or IEC 228 class 5
Core insulation: Core insulation made of EPR 3Gl3, in accordance to VDE
0207 part 20
Core identification: NSSHOU-O: black single cores NSSHÖU-J: Up to 5 cores
colour coded in accordance to VDE 0293 7 cores and more
black with printed consecutive number coding
Stranding: Cores twisted in layers
Outer sheath: Polychloroprene 5GM5 in accordance to VDE 0207 part 21
Sheath colour: Yellow
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 3000
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd]: 5 x d
Min. bending radius moved [xd]: 10 x d
Working temp fixed min/max [C]: -40°C up to +80
Working temp moved min/mac [C]: -25°C up to +80
Temp at conductor max: + 90°C
Burning behaviour: VDE 0482-332-1-2
self-extinguishing and flame retardant acc. to IEC
60332-1-2
Approvals: EN 60811-404 oil-resistant
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 65011600.00 | 1 x 16 | 11.80 | 15.40 | 25.00 |
| 65012500.00 | 1 x 25 | 14.00 | 24.00 | 39.00 |
| 65013500.00 | 1 x 35 | 15.30 | 33.60 | 50.00 |
| 65015000.00 | 1 x 50 | 16.90 | 48.00 | 67.00 |
| 65017000.00 | 1 x 70 | 19.00 | 67.20 | 90.00 |
| 65019500.00 | 1 x 95 | 21.00 | 91.20 | 117.20 |
| 650112000.00 | 1 x 120 | 24.00 | 115.20 | 147.00 |
| 650115000.00 | 1 x 150 | 26.50 | 144.00 | 176.00 |
| 650118500.00 | 1 x 185 | 30.00 | 177.60 | 219.00 |
| 650124000.00 | 1 x 240 | 32.40 | 230.40 | 279.30 |
| 650130000.00 | 1 x 300 | 42.10 | 288.00 | 346.00 |
| 65030150.00 | 3 x 1.50 | 12.50 | 4.30 | 21.00 |
| 65030250.00 | 3 x 2.50 | 13.50 | 7.20 | 28.00 |
| 65030400.00 | 3 x 4 | 16.90 | 11.52 | 40.80 |
| 65030600.00 | 3 x 6 | 18.00 | 17.28 | 52.00 |
| 65037000/35 | 3 x 70 / 35 | 45.00 | 235.20 | 430.00 |
| 65039500/50 | 3 x 95 / 50 | 53.50 | 321.60 | 569.50 |
| 650312000/70 | 3 x 120 / 70 | 58.00 | 412.80 | 704.40 |
| 65031500/70 | 3 x 150 /70 | 73.10 | 499.20 | 711.90 |
| 65040150.00 | 4 x 1.50 | 13.00 | 5.80 | 24.00 |
| 65040250.00 | 4 x 2.50 | 16.00 | 9.60 | 37.00 |
| 65040400.00 | 4 x 4 | 17.60 | 15.40 | 48.00 |
| 65040600.00 | 4 x 6 | 18.50 | 23.00 | 60.00 |
| 65041000.00 | 4 x 10 | 23.00 | 38.40 | 92.00 |
| 65041600.00 | 4 x 16 | 27.60 | 61.40 | 135.50 |
| 65042500.00 | 4 x 25 | 32.60 | 96.00 | 199.00 |
| 65043500.00 | 4 x 35 | 35.00 | 134.40 | 255.00 |
| 65045000.00 | 4 x 50 | 41.20 | 192.00 | 352.00 |
| 65047000.00 | 4 x 70 | 45.00 | 268.80 | 462.00 |
| 65049500.00 | 4 x 95 | 52.00 | 364.80 | 638.00 |
| 650412000.00 | 4 x 120 | 65.50 | 460.80 | 770.50 |
| 650415000.00 | 4 x 150 | 73.20 | 576.00 | 820.00 |
| 650418500.00 | 4 x 185 | 76.20 | 710.40 | 1060.40 |
| 65050150.00 | 5 x 1.50 | 14.50 | 7.20 | 26.60 |
| 65050250.00 | 5 x 2.50 | 17.30 | 12.00 | 40.30 |
| 65050400.00 | 5 x 4 | 18.70 | 19.20 | 54.00 |
| 65050600.00 | 5 x 6 | 21.00 | 28.80 | 72.00 |
| 65051000.00 | 5 x 10 | 25.00 | 48.00 | 105.00 |
| 65051600.00 | 5 x 16 | 30.20 | 76.80 | 158.00 |
| 65052500.00 | 5 x 25 | 35.20 | 120.00 | 233.00 |
| 65053500.00 | 5 x 35 | 44.10 | 168.00 | 340.00 |
| 65059500.00 | 5 x 95 | 60.60 | 456.00 | 673.00 |
| 65070150.00 | 7 x 1.50 | 17.20 | 10.10 | 42.00 |
| 65070250.00 | 7 x 2.50 | 18.60 | 16.80 | 52.00 |
| 65100150.00 | 10 x 1.50 | 19.60 | 14.40 | 55.00 |
| 65120250.00 | 12 x 2.50 | 23.00 | 28.80 | 81.30 |
| 65180250.00 | 18 x 2.50 | 27.50 | 43.20 | 116.00 |
| 65240150.00 | 24 x 1.50 | 27.30 | 34.60 | 90.60 |
