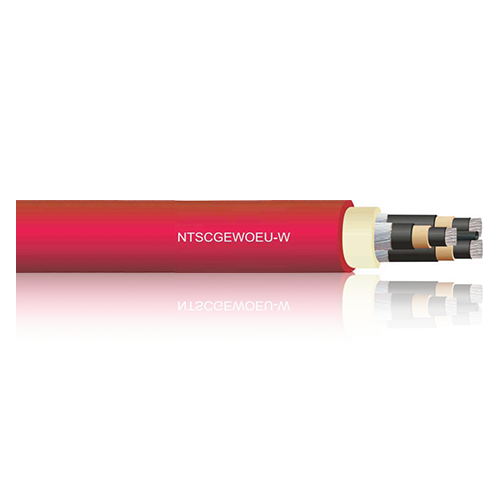

NTSCGEWOEU-W/3E

CONSTRUCTION:

– standard: acc. to DIN VDE 0250 p.813
– Electrical field control: inner and outer layers of semiconductive rubber and individual concentric protective-earth conductor
– Core arrangement: three main conductors and protective-earth conductor split into 3 elements distributed concentrically over the insulation of three power conductors laid-up together
– Wrapping: semiconductive, reinforced, swellable, binding and separating tape
– Inner sheath: EPR compound type GM1b, waterproof (acc. to DIN VDE 0201, Part 21)

TECHNICAL DATA:

Conductor Material: Finely stranded class 5 (EN 60228, DIN VDE 0295) tinned, electrolytic copper.
Conductor class: class 5
Core insulation: EPR compound with improved electrical and mechanical characteristics (DIN VDE 0207, Part 20).
Core identification: Natural colouring with black semiconductive rubber with printed white digits 1-3.
Stranding: *
Outer sheath: 5GM5 compound with improved mechanical
characteristics (acc. to DIN VDE 0207, Part 21)
Sheath colour: red
Rated voltage [V]: 3.6/6 kV 6/10 kV 8.7/15 kV 12/20 kV 14/25 kV 18/30 k
Testing voltage [V]: 11 kV up to 43 k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: Acc. to DIN VDE 0298, Part 4
Min. bending radius fixed [xd]: Acc. to DIN VDE 0298, Part 3
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -40°C up to 90
Working temp moved min/mac [C]: -25°C up to 80
Temp at conductor max: +90°C
Burning behaviour: VDE 0482 Part 332-1-2, EN 60332-1-2, IEC 60332-1-2
Approvals: *
