As control and energy cable for indoors, outdoor installation in underground and in water, water for industry and switching stations as well as local exchange networks, with risk of mechanical damages. The concentric conductor could be used as middle, protective or zero conductor, it can also be used as screen.

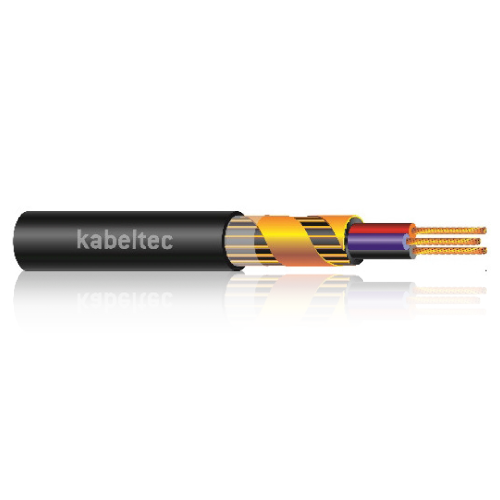

NYCWY
High voltage power cable according to VDE 0276
CONSTRUCTION:
- Plain copper conductor
- Cores twisted concentrically
- Core marking in accordance to VDE 0293
- Core insulation made of PVC
- Structure according to VDE 0295, class 1 from 25mm² class 2, single or multi-wire conductors
- Concentric conductor of plain copper wires, ceander-shaped, counter-coil of copper band under the outer sheath
- Outer sheath made of PVC black
- Flame-retardant
- Bending radius: single-core: 15 x Ø; multicore 12 x Ø
RE: round conductor, solid
RM: round conductor, stranded
SM: sectorial conductor, stranded
TECHNICAL DATA:
Conductor Material: copper, bare
Conductor class: DIN VDE 0295 class 1 or 2 from 25mm² resp. IEC 60228 cl. 1 or 2
Core insulation: PVC
Core identification: DIN VDE 0293
Stranding: cores twisted concentrically
Outer sheath: PVC
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 4000
Conductor resistance:
Insulation resistance:
Current carrying capacity: DIN VDE (see technical guidelines)
Min. bending radius fixed [xd]: single core: 15 x d multi core: 12 x d
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: -47°C up to +70
Working temp moved min/mac [C]: -15°C up to +50
Temp at conductor max: +70°C in operation +160°C in case of short-circuit
Burning behaviour: Flame Retardant VDE 0482-332-1-2/IEC 60332-1-2
Approvals:
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 700021000 | 2 x 10 RE / 10 | 19 | 31.2 | 60 |
| 701021600 | 2 x 16 RE / 16 | 21 | 48.9 | 83 |
| 701031000 | 3 x 10 RE / 10 | 20 | 40.8 | 75 |
| 701031600 | 3 x 16 RE / 16 | 22 | 64.3 | 105 |
| 701032500 | 3 x 25 RM / 25 | 26 | 100.3 | 160 |
| 701032500/16 | 3 x 25 RM / 16 | 26 | 90.2 | 160 |
| 701033500 | 3 x 35 SM / 35 | 27 | 140.2 | 185 |
| 701033500/16 | 3 x 35 SM / 16 | 27 | 119 | 170 |
| 701035000 | 3 x 50 SM / 50 | 29 | 200 | 240 |
| 701035000/25 | 3 x 50 SM / 25 | 29 | 172.3 | 230 |
| 701037000/35 | 3 x 70 SM / 35 | 33 | 241 | 291 |
| 701037000 | 3 x 70 SM / 70 | 34 | 279.6 | 330 |
| 701039500 | 3 x 95 SM / 95 | 38 | 379.1 | 450 |
| 701039500/50 | 3 x 95 SM / 50 | 38 | 329.6 | 400 |
| 7010312000 | 3 x 120 SM / 120 | 42 | 478.6 | 550 |
| 70103120/70 | 3 x 120 SM / 70 | 41 | 423.6 | 500 |
| 70103150/70 | 3 x 150 SM / 70 | 45 | 510 | 600 |
| 7010315000 | 3 x 150 SM / 150 | 46 | 597 | 675 |
| 7010318500/95 | 3 x 185 SM / 95 | 50 | 638.3 | 750 |
| 7010324000/120 | 3 x 240 SM / 120 | 57 | 824.2 | 1000 |
| 701041000 | 4 x 10 RE / 10 | 21 | 50.4 | 87 |
| 701041600 | 4 x 16 RE / 16 | 24 | 79.6 | 125 |
| 701042500/16 | 4 x 25 RM / 16 | 28 | 114.2 | 180 |
| 701043500/16 | 4 x 35 SM / 16 | 29 | 152.6 | 205 |
| 701045000/25 | 4 x 50 SM / 25 | 33 | 220.3 | 270 |
| 701047000/35 | 4 x 70 SM / 35 | 37 | 308.2 | 375 |
| 701049500/50 | 4 x 95 SM / 50 | 43 | 420.8 | 500 |
| 7010412000 | 4 x 120 SM / 70 | 47 | 538.8 | 630 |
| 7010415000/70 | 4 x 150 SM / 70 | 51 | 654 | 760 |
| 7010418500/95 | 4 x 185 SM / 95 | 57 | 815.9 | 930 |
| 7010424000/120 | 4 x 240 SM / 120 | 61 | 1054.6 | 1160 |
