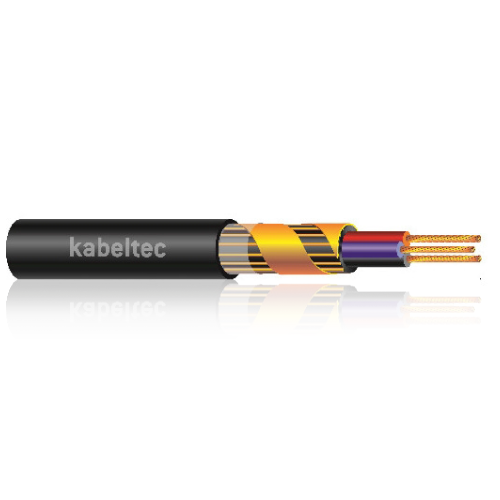

NYCY

High voltage power cable according to VDE 0271/0276

Size
UOM

QUANTITY

TOTAL PRICE

SGD 0.00

As control and energy cable for indoors, outdoor installation in underground and in water, for industry and switching stations as well as local exchange networks, with risk of mechanical damages. The concentric conductor could be used as middle, protective or zero conductor it also can be used as screen.

CONTRUCTION:

Plain copper conductor
Core marking: 1 to 5 cores: according to VDE 0293 (colour coded) / > 6-cores: number coded (JZ)
Core insulation made of PVC
Strand structure according to VDE 0295, class 1 , single or multi wire conductors
Cores twisted concentrically
Copper wire to the common sheath conductor stranded, one or two counter tapes.
Outer sheath made of PVC black
Flame-retardant
Bending radius: single-core: 15 x Ø; multicore 12 x Ø
RE: round conductor, single wire
RM: round conductor, multi wire
SM: sectorial conductor

TECHNICAL DATA:

Conductor Material: copper, bare
Conductor class: Class 1
Core insulation: PVC
Core identification: 1 to 5 cores: according to VDE 0293 (colour coded) > 6
cores: number coded (JZ)
Stranding: Cores twisted concentrically
Outer sheath: PVC
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 4000
Conductor resistance: DIN VDE 0295 class 1 or IEC 60228 cl. 1
Insulation resistance:
Current carrying capacity: DIN VDE (see technical guidelines)
Min. bending radius fixed [xd]: single core 15 x d multi core: 12
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: -47°C up to +70
Working temp moved min/mac [C]: -15°C up to +50
Temp at conductor max: +70°C in operation +160°C in case of short-circuit
Burning behaviour: Flame Retardant VDE 0482-332-1-2/IEC 60332-1-2
Approvals:

PART NUMBER	CORES	OUTER DIAMETER	COPPER WEIGHT KG/100M	WEIGHT KG/100M
700020150	2 x 1.50 RE / 1,5	13	5.2	21
700020250	2 x 2.50 RE / 2,5	14	8	26
700020400	2 x 4 RE / 4	16	12.3	35
700020600	2 x 6 RE / 6	18	18.2	44
700021000	2 x 10 RE / 10	20	31.2	52
700021600	2 x 16 RE / 16	20.5	48.9	72
700030150	3 x 1.50 RE / 1,5	14	6.6	22
700030250	3 x 2.50 RE / 2,5	15	10.4	29
700030400	3 x 4 RE / 4	16	16.1	39
700030600	3 x 6 RE / 6	18	24	50
700031000	3 x 10 RE / 10	21	40.8	68
700031600	3 x 16 RE / 16	22	64.3	101
700040150	4 x 1.50 RE / 1,5	14	8.1	26
700040250	4 x 2.50 RE / 2,5	15	12.8	34
700040400	4 x 4 RE / 4	17	20	47
700040600	4 x 6 RE / 6	19	29.7	59
700041000	4 x 10 RE / 10	21	50.4	90
700041600	4 x 16 RE / 16	23	79.6	106
700050150	5 x 1.50 RE / 1,5	15	9.5	32
700050250	5 x 2.50 RE / 2,5	16	15.2	39
700050400	5 x 4 RE / 4	19	23.8	56
700050600	5 x 6 RE / 6	20	35.5	69
700070150/2,5	7 x 1.50 RE / 1,5	15	12.4	34
700070400	7 x 2.50 RE / 2,5	17	20	45
700070400	7 x 4 RE / 4	20	31.5	60
700070600	7 x 6 RE / 6	24	47	79
700080150	8 x 1.50 RE / 2.5	17.5	14.7	45
700080250	8 x 2.50 RE / 4	19	23.8	53
700080400	8 x 4 RE / 4	20	36	77
700080400	8 x 4 RE / 6	21	37.4	75.1
700080600	8 x 6 RE / 6	23.3	53.5	101
700100150	10 x 1.50 RE / 2,5	19	17.6	42
700100250	10 x 2.50 RE / 4	21	28.6	60
700100400	10 x 4 RE / 6	23.5	45.1	90
700120150	12 x 1.50 RE / 2,5	20	20.5	48
700120250	12 x 2.50 RE / 4	22	33.4	66
700120400	12 x 4 RE / 6	24.5	52.8	106
700140150	14 x 1.50 RE / 2,5	21	23.4	53
700140250	14 x 2.50 RE / 6	23	40.3	75
700160150	16 x 1.50 RE / 4	22	27.6	70
700160250	16 x 2.50 RE / 6	24	45.1	88.5
700190150	19 x 1.50 RE / 4	23	32	66
700190250	19 x 2.50 RE / 6	25	52.3	94
700210150	21 x 1.50 RE / 6	24	36.9	93.4
700240150	24 x 1.50 RE / 6	26	41.3	85
700240250	24 x 2.50 RE / 10	28	69.6	139.6
700240400	24 x 4 RE / 10	32.3	104.2	181.3
700300150	30 x 1.50 RE / 6	27	49.9	122.7
700300250	30 x 2.50 RE / 10	30	84	160
700400150	40 x 1.50 RE / 10	30	69.6	158
700400250	40 x 2.50 RE / 10	33	108	197.3
700520150	52 x 1.50 RE / 10	32	86.9	180
700520250	52 x 2.50 RE / 10	38	136.8	246.4
700610150	61 x 1.50 RE / 10	33	99.8	197.2
700610250	61 x 2.50 RE / 10	40	158.4	228
