Suitable for use in, on and under the plaster, in dry and wet rooms as well as in
brickwork or concrete.

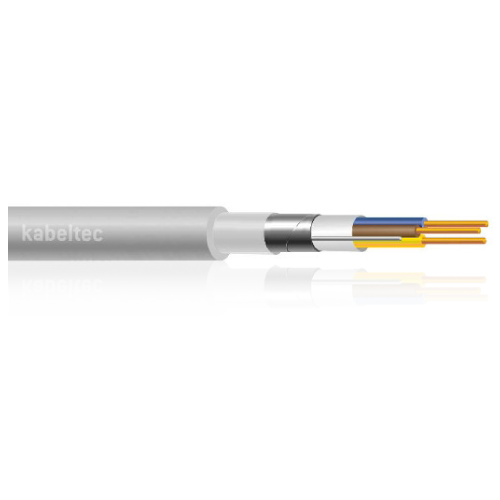

(N)YM(ST)-J
Installation cable, screened
CONSTRUCTION:
– copper wire single cored as per VDE 0295
– copper drain wire
– cores twisted in layers
– core insulation PVC
– screen made of aluminum laminated foil
– Bending radius 6 x Ø
– flame-retardant
Technical Data:
| Conductor Material: | Copper, Bare |
| Conductor class: | Class 1 from 16mm² Class 2 |
| Core insulation: | PVC |
| Core identification: | VDE 0293 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7035) |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 2000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/max [C]: | +5°C up to +70°C |
| Temp at conductor max.: | +70°C |
| Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 580030150.00 | 3 x 1.50 | 10.00 | 5.10 | 15.40 |
| 580030250.00 | 3 x 2.50 | 11.50 | 8.00 | 20.30 |
| 580030400.00 | 3 x 4 | 11.50 | 12.30 | 29.00 |
| 580030600.00 | 3 x 6 | 15.00 | 18.00 | 37.90 |
| 580040150.00 | 4 x 1.50 | 12.00 | 6.50 | 18.40 |
| 580040250.00 | 4 x 2.50 | 12.50 | 10.40 | 25.60 |
| 580040400.00 | 4 x 4 | 10.50 | 15.90 | 35.90 |
| 580050150.00 | 5 x 1.50 | 13.00 | 8.00 | 20.80 |
| 580050250.00 | 5 x 2.50 | 16.50 | 12.80 | 28.50 |
| 580050400.00 | 5 x 4 | 13.50 | 20.00 | 44.40 |
| 580050600.00 | 5 x 6 | 15.50 | 29.60 | 56.70 |
| 580051000.00 | 5 x 10 | 18.00 | 48.80 | 86.30 |
| 580051600.00 | 5 x 16 | 26.00 | 77.60 | 134.70 |
| 580070150.00 | 7 x 1.50 | 12.10 | 10.80 | 24.80 |
