Distribution and signal power cable for static application, mostly in ground, but also in water, within and outside facilities, in cable canals, in concrete. Used in electric plants and other electric plants, in industry, metropolitan networks and for connection of signalling devices in industry, traffic and similar. Resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding.

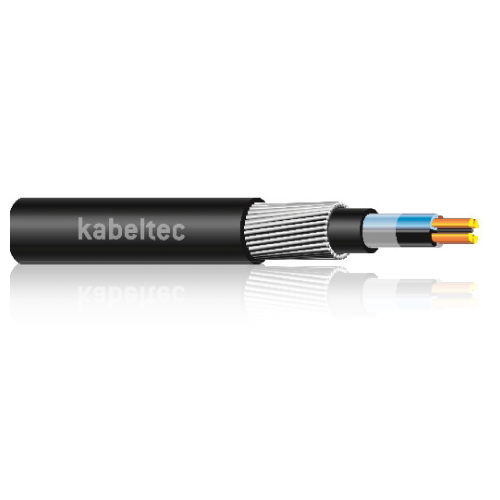

NYRY
Power cable, armoured
Construction:
Copper conductor, Class 1/2 acc to IEC 60228/DIN VDe 0295
a) Class 1. solid round (RE)
b) Class2. multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50mm² are compacted
PVC insulation
Extruded elastomer or plastomer compound or wrapped thermoplastic tape filler
A layer of thin round galvanized steel wire armour
PVC outer sheath, black
Technical Data:
Conductor Material: Copper
Conductor class: Class 1 or 2
Core insulation: PVC
Core identification: colored acc. to HD 308; more than 5 cores: numbers
Stranding: cores twisted concentrically
Outer sheath: PVC
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 3500
Conductor resistance:
Insulation resistance:
Current carrying capacity: DIN VDE
Min. bending radius fixed [xd]: 12 x d multi core
15x d single core
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: -47°C up to +70°C
Working temp moved min/mac [C]: -15°C up to +50°C
Temp at conductor max.:
Burning behaviour: Flame Retardant IEC 60332-1-2
Fire Retardant IEC 60332-3-22-Cat A. (ng(A)-LS)
Low smoke density: According to IEC 61034 (reduced
light transmission no more than 50%)
Approvals:
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 906030150 | 3 x 2.50 | 14.7 | 7.2 | 43.9 |
| 906030400 | 3 x 4 | 17.2 | 11.52 | 66.7 |
| 906031000 | 3 x 10 | 20.9 | 28.8 | 102.9 |
| 906040150 | 4 x 1.50 | 14.6 | 5.76 | 42.6 |
| 906040250 | 4 x 2.50 | 16.4 | 9.6 | 60.3 |
| 906043500/16 | 4 x 35 /16 | 33.7 | 136.75 | 297.75 |
| 9060418500/95 | 4 x 185 /95 | 735.9 | ||
| 906050150 | 5 x 1.50 | 16.3 | 7.2 | 58.1 |
| 906050250 | 5 x 2.50 | 17.4 | 12 | 67.3 |
| 906050600 | 5 x 6 | 20.9 | 28.8 | 102.7 |
