PA-BUS-BLACK_BLUE

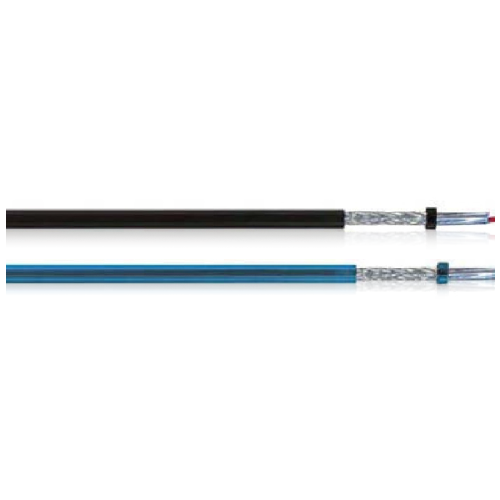

PA-BUS Black/Blue

Blue: For intrinsically safe equipment
TOTAL PRICE

SGD 0.00

This cable is used to connect bus segments using the RS485 1158-2
transmission methods by means of segment couplers.
Blue: In intrinsically safe equipment
Black: Not in intrinsically safe equipment

Special characteristics

  • Resistance to UV radiate
  • Properties in case of fire
  • Excellent resistance to mineral oils and grease

CONSTRUCTION:

  • Copper conductor
  • Cores insulated with expanded PE
  • Coloured cores
  • Twisted with blind cores in voids
  • Screened with composite aluminium foil and tinned copper braid
  • Outer sheath made of special flame retardant PVC
  • Sheath colour: black, blue for applications in locations with potential explosion hazard
  • Sheath colour: black or blue

TECHNICAL DATA:

Conductor Material Copper, bare
Conductor class 7-wire
Core insulation PE
Core identification colours: red and green
Stranding cores twisted in layers
Outer sheath special PVC
Sheath colour Black or Blue
Rated voltage [V] max. 100
Testing voltage [V] core/core 1000 V core/screen 800
Conductor resistance ≤ 23 Ω / km
Insulation resistance ≥ 10 MΩ x km
Current carrying capacity *
Min. bending radius fixed [xd] *
Min. bending radius moved [xd] *
Working temp fixed min/max [C] -40 up to +80°C
Working temp moved min/mac [C] -5° up to +80
Temp at conductor max. *
Burning behaviour IEC 60332-1: flame-retarding and self-estinguishing
Approvals Standard VDE 0482, Part 265-2-1 / IEC 60332-1

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
207000100SW 1 x 2 xAWG 18/7 SW 7.90 4.50 7.30
207000100BL 1 x 2 xAWG 18/7 BL 7.90 4.50 7.30
20700100VI0 1 x 2 xAWG 18/7 V10 7.90 4.50 7.30
