This cable is used to connect bus segments using the RS485 1158-2 transmission methods by means of segment couplers.
Special characteristics:
- Resistance to UV radiate
- Properties in case of fire
- Excellent resistance to mineral oils and grease

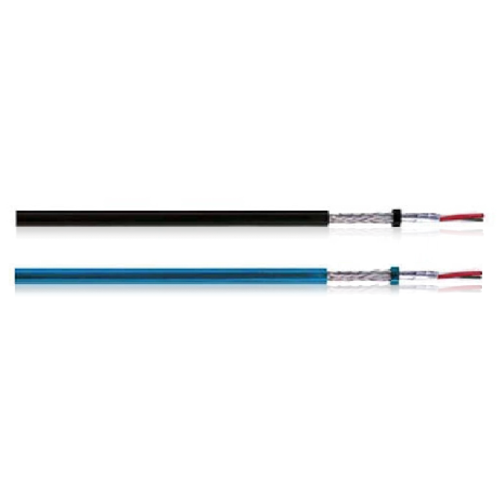

PA-BUS Fast Connect
CONSTRUCTION:
- Copper conductor
- Cores insulated with expanded PE
- Coloured cores, red an green
- Twisted with blind cores in voids
- Screened with composite aluminium foil and tinned copper braid
- Inner bedding
- Outer sheath made of special flame retardant PVC (equivalent to VDE 0472 part 804 test type B)
- Sheath colour: black, blue for applications in locations with potential explosion hazard
Fast Connect System:
The cable design makes the fast connection engineering with IDC (Insulation Displacement Connector) possible. Preparation of connection with suitable dismantling tools.
TECHNICAL DATA:
| Conductor Material | Bare copper |
| Conductor class | 7-wire |
| Core insulation | Zell-PE |
| Core identification | colours: red and green |
| Stranding | cores twisted in layers |
| Outer sheath | special-PVC flame-retarding |
| Sheath colour | Black |
| Rated voltage [V] | < 100 |
| Testing voltage [V] | 1500 |
| Conductor resistance | ≤ 44 Ω / km |
| Insulation resistance | ≥ 16000 MΩ / km |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 5x d |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -40 up to +80°C |
| Working temp moved min/mac [C] | -5° up to +80 |
| Temp at conductor max. | * |
| Burning behaviour | IEC 60332-1: flame-retarding and self-exstinguishing |
| Approvals | Standard VDE 0482, Part 265-2-1 / IEC 60332-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 383000003SKSW | 1 x 2 x 1 | 7.50 | 2.30 | 10.00 |
| 383000003SKBL | 1 x 2 x 1 | 7.50 | 2.30 | 10.00 |
