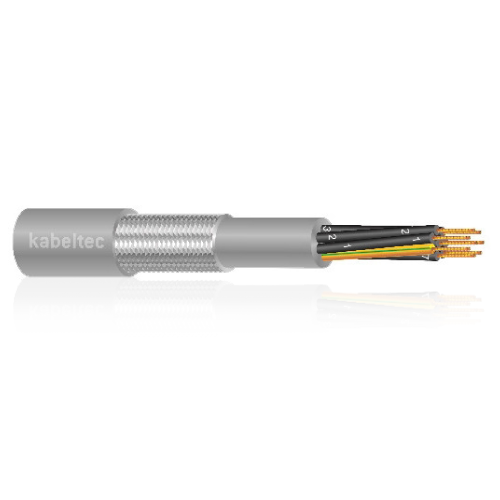

Control cable with high abrasion and tear resistant properties. Also resistant to mineral oils, especially to coolant emulsions and UV-radiation. The copper braiding screening prevents interferences of high electrical influences and is, therefore, suitable as data transmission cable and connection cable.
PU-CY
Screened pur-conrol cable, number coded
CONSTRUCTION:
- Bare copper conductor
- Cores twisted in layers
- Inner sheath of special PVC-compound
- Stranding acc. to VDE 0295 class 5
- PVC insulated cores
- Cores consecutive numbered
- Protective conductor: green/yellow
- Tinned copper wire braid
- PUR outer sheath
- Colour of sheath grey, RAL 7001
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 acc. to VDE 0295 or IEC 60228 |
| Core insulation | PUR |
| Core identification | VDE 0293-1 |
| Stranding | Cores twisted in layers |
| Outer sheath | PUR |
| Sheath colour | Grey (RAL 7001) |
| Rated voltage [V] | 300/500 |
| Testing voltage [V] | 4000 |
| Conductor resistance | |
| Insulation resistance | > 20 MΩ x km |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 20 x d |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +70°C |
| Temp at conductor max. | |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | Oil resistance VDE 0472 part 803 VDE 0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 274020050.00 | 2 x 0.50 | 6.60 | 3.30 | 6.80 |
| 274020075.00 | 2 x 0.75 | 7.20 | 4.50 | 8.50 |
| 274020100.00 | 2 x 1 | 8.10 | 4.60 | 9.70 |
| 274020150.00 | 2 x 1.50 | 8.50 | 7.70 | 11.60 |
| 274020250.00 | 2 x 2.50 | 10.60 | 9.60 | 18.00 |
| 274020400.00 | 2 x 4 | 12.60 | 13.40 | 30.00 |
| 274030050.00 | 3 x 0.50 | 7.10 | 3.90 | 8.40 |
| 274030075.00 | 3 x 0.75 | 7.70 | 5.20 | 9.80 |
| 274030100.00 | 3 x 1 | 8.50 | 5.60 | 10.20 |
| 274030150.00 | 3 x 1.50 | 8.90 | 7.50 | 13.50 |
| 274030250.00 | 3 x 2.50 | 11.10 | 16.30 | 19.10 |
| 274030400.00 | 3 x 4 | 13.40 | 17.80 | 34.00 |
| 274030600.00 | 3 x 6 | 15.20 | 24.10 | 45.30 |
| 274031000.00 | 3 x 10 | 19.50 | 37.00 | 75.00 |
| 274040050.00 | 4 x 0.50 | 7.60 | 4.60 | 9.50 |
| 274040075.00 | 4 x 0.75 | 8.20 | 7.70 | 11.20 |
| 274040100.00 | 4 x 1 | 9.00 | 7.00 | 12.90 |
| 274040150.00 | 4 x 1.50 | 9.70 | 9.50 | 16.20 |
| 274040250.00 | 4 x 2.50 | 12.10 | 17.50 | 23.20 |
| 274040400.00 | 4 x 4 | 15.00 | 23.80 | 34.50 |
| 274040600.00 | 4 x 6 | 17.00 | 31.80 | 48.30 |
| 274041000.00 | 4 x 10 | 21.50 | 55.80 | 73.30 |
| 274041600.00 | 4 x 16 | 24.60 | 104.00 | 134.00 |
| 274042500.00 | 4 x 25 | 30.60 | 131.20 | 189.40 |
| 274043500.00 | 4 x 35 | 36.90 | 161.20 | 239.50 |
| 274045000.00 | 4 x 50 | 41.30 | 221.80 | 331.20 |
| 274047000.00 | 4 x 70 | 48.80 | 309.20 | 460.50 |
| 274049500.00 | 4 x 95 | 55.80 | 406.30 | 605.50 |
| 2740412000.00 | 4 x 120 | 59.40 | 515.40 | 731.80 |
| 274050050.00 | 5 x 0.50 | 8.20 | 5.20 | 10.70 |
| 274050075.00 | 5 x 0.75 | 8.80 | 7.00 | 13.00 |
| 274050100.00 | 5 x 1 | 9.90 | 8.50 | 15.20 |
| 274050150.00 | 5 x 1.50 | 10.80 | 12.00 | 18.70 |
| 274050250.00 | 5 x 2.50 | 13.20 | 20.00 | 28.20 |
| 274050400.00 | 5 x 4 | 16.40 | 32.70 | 41.20 |
| 274050600.00 | 5 x 6 | 18.60 | 44.00 | 57.60 |
| 274051000.00 | 5 x 10 | 23.90 | 61.20 | 111.40 |
| 274051600.00 | 5 x 16 | 27.30 | 139.30 | 155.00 |
| 274052500.00 | 5 x 25 | 34.10 | 184.00 | 227.20 |
| 274053500.00 | 5 x 35 | 41.10 | 201.60 | 289.00 |
| 274055000.00 | 5 x 50 | 45.80 | 277.20 | 410.00 |
| 274057000.00 | 5 x 70 | 53.10 | 386.50 | 571.00 |
| 274070050.00 | 7 x 0.50 | 9.40 | 6.90 | 13.50 |
| 274070075.00 | 7 x 0.75 | 10.10 | 9.20 | 16.10 |
| 274070100.00 | 7 x 1 | 11.60 | 11.00 | 18.40 |
| 274070150.00 | 7 x 1.50 | 12.50 | 14.60 | 23.60 |
| 274070250.00 | 7 x 2.50 | 15.90 | 23.40 | 37.00 |
| 274070400.00 | 7 x 4 | 18.20 | 35.40 | 64.00 |
| 274070600.00 | 7 x 6 | 20.70 | 50.50 | 90.50 |
| 274071000.00 | 7 x 10 | 26.50 | 82.20 | 150.50 |
| 274080100.00 | 8 x 1 | 12.50 | 13.00 | 27.00 |
| 274080150.00 | 8 x 1.50 | 13.70 | 17.10 | 33.50 |
| 274100050.00 | 10 x 0.50 | 11.20 | 8.10 | 17.00 |
| 274100075.00 | 10 x 0.75 | 12.20 | 14.10 | 27.00 |
| 274100100.00 | 10 x 1 | 14.00 | 13.70 | 33.00 |
| 274100150.00 | 10 x 1.50 | 15.10 | 19.20 | 42.20 |
| 274120050.00 | 12 x 0.50 | 11.30 | 11.80 | 19.50 |
| 274120075.00 | 12 x 0.75 | 12.30 | 15.00 | 24.50 |
| 274120100.00 | 12 x 1 | 14.40 | 18.70 | 30.60 |
| 274120150.00 | 12 x 1.50 | 15.50 | 25.40 | 39.20 |
| 274120250.00 | 12 x 2.50 | 19.50 | 36.90 | 58.00 |
| 274140050.00 | 14 x 0.50 | 0.00 | 0.00 | 0.00 |
| 274140075.00 | 14 x 0.75 | 13.00 | 14.50 | 31.70 |
| 274140100.00 | 14 x 1 | 15.00 | 19.90 | 40.20 |
| 274140150.00 | 14 x 1.50 | 16.10 | 27.20 | 48.00 |
| 274160100.00 | 16 x 1 | 15.90 | 20.20 | 42.00 |
| 274160150.00 | 16 x 1.50 | 17.20 | 28.40 | 52.50 |
| 274180050.00 | 18 x 0.50 | 12.90 | 15.50 | 27.80 |
| 274180075.00 | 18 x 0.75 | 14.60 | 24.30 | 35.40 |
| 274180100.00 | 18 x 1 | 17.00 | 30.30 | 41.70 |
| 274180150.00 | 18 x 1.50 | 18.60 | 40.00 | 53.60 |
| 274200100.00 | 20 x 1 | 17.80 | 28.50 | 54.50 |
| 274210050.00 | 21 x 0.50 | 0.00 | 0.00 | 0.00 |
| 274210075.00 | 21 x 0.75 | 16.00 | 23.00 | 45.50 |
| 274210150.00 | 21 x 1.50 | 20.00 | 41.50 | 72.20 |
| 274250050.00 | 25 x 0.50 | 15.90 | 25.10 | 40.60 |
| 274250075.00 | 25 x 0.75 | 17.80 | 25.80 | 46.30 |
| 274250100.00 | 25 x 1 | 20.60 | 37.90 | 54.10 |
| 274250150.00 | 25 x 1.50 | 22.10 | 57.20 | 74.20 |
| 274300050.00 | 30 x 0.50 | 15.90 | 25.10 | 40.60 |
| 274320075.00 | 32 x 0.75 | 18.70 | 33.10 | 68.80 |
| 274340075.00 | 34 x 0.75 | 18.90 | 31.50 | 59.80 |
| 274340100.00 | 34 x 1 | 23.10 | 44.00 | 73.50 |
| 274340150.00 | 34 x 1.50 | 24.70 | 75.40 | 96.00 |
| 274360050.00 | 36 x 0.50 | 17.80 | 32.00 | 58.70 |
| 274400050.00 | 40 x 0.50 | 19.10 | 34.40 | 65.50 |
| 274410050.00 | 41 x 0.75 | 21.50 | 50.00 | 72.50 |
| 274410100.00 | 41 x 1 | 25.00 | 52.30 | 86.00 |
| 274410150.00 | 41 x 1.50 | 26.80 | 66.70 | 111.80 |
| 274420150.00 | 42 x 1.50 | 27.50 | 76.70 | 137.00 |
| 274500050.00 | 50 x 0.50 | 20.90 | 40.80 | 74.20 |
| 274500075.00 | 50 x 0.75 | 23.30 | 48.00 | 110.00 |
| 274500100.00 | 50 x 1 | 29.00 | 62.50 | 131.80 |
| 274500150.00 | 50 x 1.50 | 29.30 | 97.60 | 167.70 |
