Control cable with high abrasion and tear resistant properties. Also resistant to mineral oils, especially to coolant emulsions and UV-radiation. The copper braiding screening prevents interferences of high electrical influences and is, therefore, suitable as data transmission cable and connection cable.

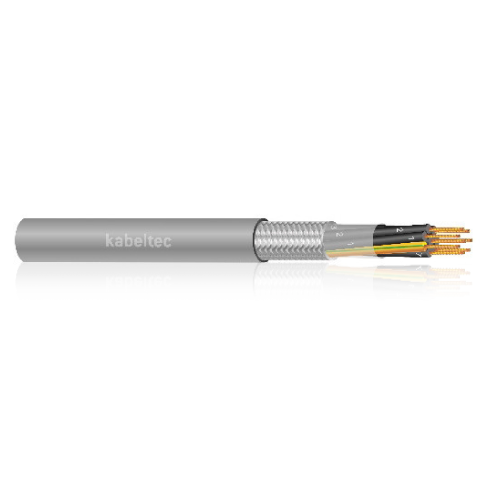

PU-CY No Iner Bedding
Screened pur-control cable, number coded
CONSTRUCTION:
- Bare copper conductor
- Cores twisted in layers
- Stranding acc. to VDE 0295 class 5
- PVC insulated cores
- Cores consecutive numbered
- Protective conductor: green/yellow
- Tinned copper wire braid
- PUR outer sheath
- Colour of sheath grey, RAL 7001
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to VDE 0295 or IEC 60228 |
| Core insulation: | PVC |
| Core identification: | VDE 0293-1 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PUR |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | > 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd] : | 6 x d |
| Min. bending radius moved [xd]: | 20 x d |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals: | Oil resistance VDE 0472 part 803 VDE 0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 305250075.00 | 25 x 0,75 | 14,9 | 44.00 | 28.00 |
