Flexible control cable for permanent moved applications under heavy duty conditions. The cable is halogen-free, flame retardant and resistant against most often used chemical substances in industrial environment.

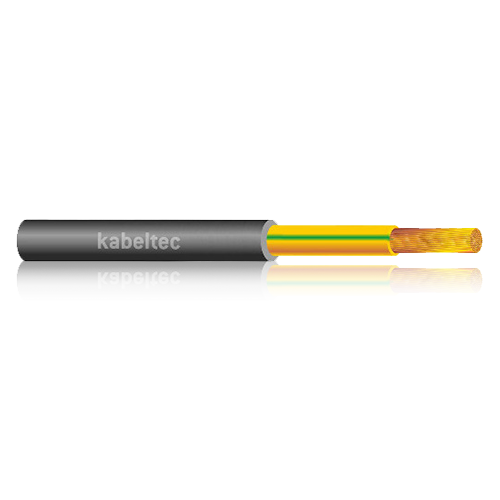

PU-EF (9Y11Y) SC
- CONSTRUCTION:
- Ul/csa
- Fine stranded class 6
- Flame retardant vde 0482-332-1-2/iec 60332-1
- Halogen-free din en 50267/iec 60754
- Oil resistant en 60811-2-1
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 |
| Core insulation: | PP |
| Core identification: | black or green/yellow |
| Stranding: | |
| Outer sheath: | Polyurethan |
| Sheath colour: | black |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4 k |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7.5 x d |
| Working temp fixed min/max [C]: | -30°C up to +80°C |
| Working temp moved min/mac [C]: | -20°C up to + 80°C |
| Temp at conductor max.: | |
| Burning behaviour: | Flame retardant VDE 0482-332-1-2/IEC 60332-1 |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| SW/SW | 1 x 6 | 7.10 | 5.80 | 8.80 |
| GG/SW | 1 x 6 | 7.10 | 5.80 | 8.80 |
| SW/SW | 1 x 6 | 7.1 | 5.8 | 8.8 |
| GG/SW | 1 x 6 | 7.1 | 5.8 | 8.8 |
| SW/SW | 1 x 10 | 8 | 9.6 | 13.5 |
| GG/SW | 1 x 10 | 8 | 9.6 | 13.5 |
| SW/SW | 1 x 16 | 9.4 | 15.4 | 20.5 |
| GG/SW | 1 x 16 | 9.4 | 15.4 | 20.5 |
| SW/SW | 1 x 25 | 10.9 | 24 | 29 |
| GG/SW | 1 x 25 | 10.9 | 24 | 29 |
| SW/SW | 1 x 35 | 13.2 | 33.6 | 41.1 |
| GG/SW | 1 x 35 | 13.2 | 33.6 | 41.1 |
| SW/SW | 1 x 50 | 14.2 | 48 | 55.4 |
| GG/SW | 1 x 50 | 14.2 | 48 | 55.4 |
| SW/SW | 1 x 70 | 16.5 | 67.2 | 77.3 |
| GG/SW | 1 x 70 | 16.5 | 67.2 | 77.3 |
| SW/SW | 1 x 95 | 18.4 | 91.2 | 106.6 |
| GG/SW | 1 x 95 | 18.4 | 91.2 | 106.6 |
| SW/SW | 1 x 120 | 20.5 | 115.2 | 130.5 |
| GG/SW | 1 x 120 | 20.5 | 115.2 | 130.5 |
| SW/SW | 1 x 150 | 22.5 | 144 | 161.6 |
| GG/SW | 1 x 150 | 22.5 | 144 | 161.6 |
| SW/SW | 1 x 185 | 26.1 | 177.6 | 202.5 |
| GG/SW | 1 x 185 | 26.1 | 177.6 | 202.5 |
