Highly-flexible data cable for continuous mobile use under extreme conditions with particular requirements on EMC. It is applicable in standard drag chains without tensile load. The cable is flame retardant, and largely resistant against most chemicals used in industrial environment.

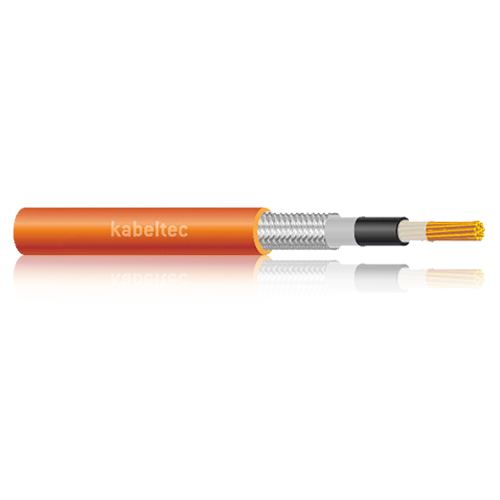

PU-EF-CP (9YC11Y) SC
- CONSTRUCTION:
- UL/CSA
- Fine stranded class 6
- Halogen free DIN EN 50267/IEC 60754
- PP core insulation
- CU screen, 85% coverage
- PUR outer sheath, orange RAL 2003
Technical Data:
| Conductor Material: | Bare copper |
| Conductor class: | Class 6 |
| Core insulation: | PP |
| Core identification: | black |
| Stranding: | |
| Outer sheath: | Polyurethane |
| Sheath colour: | orange RAL 2003 (DESINA) |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4K |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7.5 x d |
| Working temp fixed min/max [C]: | -50°C bis +80°C |
| Working temp moved min/mac [C]: | -40°C bis + 80°C |
| Temp at conductor max.: | |
| Burning behaviour: | |
| Approvals: | – flame retardant VDE 0482-332-1-2/IEC 60332-1 |
| – oil resistant EN 60811-2-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| PU-EF-CP (9YC11Y) SC 1 | 1 x 6 | 7.60 | 7.90 | 12.30 |
| PU-EF-CP (9YC11Y) SC 2 | 1 x 10 | 8.50 | 12.76 | 17.70 |
| PU-EF-CP (9YC11Y) SC 3 | 1 x 16 | 9.90 | 18.62 | 24.10 |
| PU-EF-CP (9YC11Y) SC 4 | 1 x 25 | 11.40 | 25.80 | 35.40 |
| PU-EF-CP (9YC11Y) SC 5 | 1 x 35 | 13.90 | 40.07 | 48.80 |
| PU-EF-CP (9YC11Y) SC 6 | 1 x 50 | 14.90 | 55.48 | 62.90 |
| PU-EF-CP (9YC11Y) SC 7 | 1 x 70 | 17.20 | 77.56 | 86.30 |
| PU-EF-CP (9YC11Y) SC 8 | 1 x 95 | 19.30 | 102.90 | 119.30 |
| PU-EF-CP (9YC11Y) SC 9 | 1 x 120 | 21.40 | 128.30 | 145.20 |
| PU-EF-CP (9YC11Y) SC 10 | 1 x 150 | 23.40 | 157.00 | 178.00 |
| PU-EF-CP (9YC11Y) SC 11 | 1 x 185 | 27.00 | 193.50 | 215.20 |
