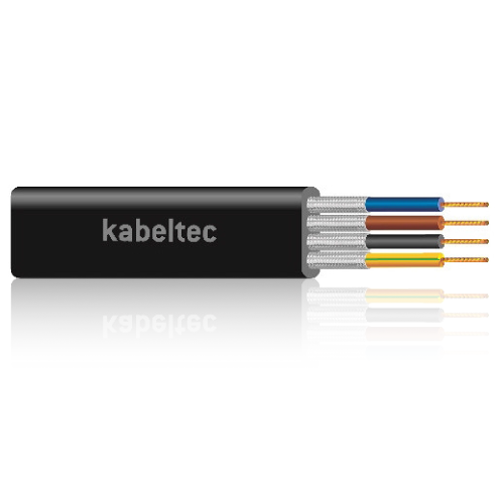

PVC-FLAT-CY

PVC-FLAT-CY

screened
TOTAL PRICE

SGD 0.00

Can be used in dry, damps and wet rooms. Due to the screening of single cores of bundies this cable is suitable for EMC-critical use.

CONSTRUCTION:

  • Fine bare copper conductors
  • Strand structure according to VDE 0295, class 5
  • PVC insulation
  • Core marking: up to 5 cores colour coded in accordance to VDE 0293 7 cores and over black with printed consecutive number coding
  • Earth conductor green/yellow
  • Copper wire braid
  • PVC outher sheath, black
  • Suitable in low temperatures

TECHNICAL DATA:

Conductor Material Copper ,bare
Conductor class Class 5
Core insulation PVC
Core identification
Up to 5 cores colour coded in accordance to VDE 0293, 6 cores and more black with printed consecutive number coding
Stranding Cores side by side
Outer sheath PVC
Sheath colour Black
Rated voltage [V] 300 / 500
Testing voltage [V] 1200
Conductor resistance *
Insulation resistance *
Current carrying capacity DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd] 10 x d
Min. bending radius moved [xd] 10 x d
Working temp fixed min/max [C] -40°C up to +70
Working temp moved min/mac [C] -5°C up to +70
Temp at conductor max +70 °C
Burning behaviour IEC 60332-1: flame-retardant and self-extinguishing
Approvals *

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
673040150 4 x 1.50 OB 6.5 x 19.6 11.4 21
673040250 4 x 2.50 JB 7.4 x 22.0 16.8 27
673040400 4 x 4 JB 9.4 x 28.1 22 40
673040600 4 x 6 JB 9.8 x 31.2 32.5 52
673041000 4 x 10 JB 11.8 x 37.5 52.1 84
673041600 4 x 16 JB 14.0 x 46.0 78.4 128
673042500 4 x 25 JB 15.0 x 51.0 116.3 180
673043500 4 x 35 JB 16.5 x 59.0 177.6 247.8
672050050 5 x 0.50 5.0 x 22.0 6 13
673070100B 7 x 3 G 1 10.4 x 54.3 27.5 75.5
673070050B 7 x 4x0.5 10.3 x 50.0 22.2 74.5
673080150 8 x 1.50 OZ 6.5 x 37.0 21.7 40
673080150 8 x 1.50 JZ 6.5 x 37.0 21.7 40
673120150 12 x 1.50 OZ 6.5 x 52.7 33.5 61
