Halogen-free installation cable in fire vulnerable areas and facilities with high concentration of property and people values. In telecommunication and IT- systems as well as measurement and control technology. For indoor use in dry and humid places, on and in-wall laying, outdoor use but no UV resistant. Not suitable for direct burial

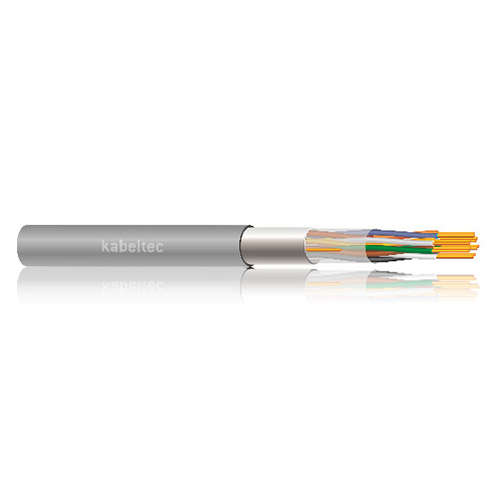

RD-H(St)H
CONSTRUCTION:
– Conductor construction: stranded, class 2
– Screen: aluminium foil
– outer sheath made of special halogen-free compound
Technical Data:
Conductor Material: Bare Copper
Conductor class: Class 2
Core insulation: special halogen-free compound
Core identification: blue, red; grey, yellow; green, brown, white, black
Stranding: 2 cores twisted to a pair, each 4 pairs stranded to
bundles, bundles marked with numerals
Outer sheath: Special halogen-free compound
Sheath colour: grey
Rated voltage [V]: 225
Testing voltage [V]: 2 k
Conductor resistance: Loop: 0,5: 78,4 Ω/km; 1,0: 38,8 Ω km
Insulation resistance: min 100 MΩ x km
Current carrying capacity: DIN VDE
Min. bending radius fixed [xd]: 7.5 x d
Min. bending radius moved [xd]: 10 x d
Working temp fixed min/max [C]: -30°C up to +70
Working temp moved min/mac [C]: -30°C up to +50
Temp at conductor max.: *
Burning behaviour: Flame-retardant: DIN EN 50266-2-4, VDE 0472 and IEC 60332-3 Cat. C
Approvals: acc. to DIN VDE 0815
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 1x2 x 0.50 | 5.5 | 1.5 | 3.5 | |
| 2x2 x 0.50 | 8.5 | 2.5 | 6.5 | |
| 2x2 x 1.00 | 7.6 | 5.1 | 13 | |
| 4x2 x 0.50 | 10.5 | 4.6 | 11 | |
| 4x2 x 1.00 | 9 | 9.1 | 18 | |
| 8x2 x 0.50 | 12.5 | 8.6 | 18 | |
| 8x2 x 1.00 | 15.2 | 17.2 | 38 | |
| 12x2 x 0.50 | 14 | 12.7 | 26.5 | |
| 12x2 x 1.00 | 17.5 | 25.5 | 43.5 | |
| 16x2x x 0.50 | 15.5 | 16.7 | 33.5 | |
| 16x2 x 1.00 | 19.5 | 33.8 | 56 | |
| 20x2 x 0.50 | 20.5 | 38 | ||
| 20x2 x 1.00 | 21 | 42.3 | 68 | |
| 24x2 x 0.50 | 18 | 25 | 45 | |
| 24x2 x 1.00 | 23 | 50.7 | 80.5 | |
| 32x2 x 0.50 | 21 | 33.1 | 57 | |
| 32x2 x 1.00 | 29 | 67.4 | 108 | |
| 48x2 x 0.50 | 26 | 49.4 | 81 | |
| 96x2 x 0.50 | 37 | 98.6 | 157 |
