Power cables with fine wire strands of plain electrolytic copper wire, XLPE insulation and halogen free outer sheath.
For transport and distribution of electric power in fixed installations, indoor and outdoor and industrial use.

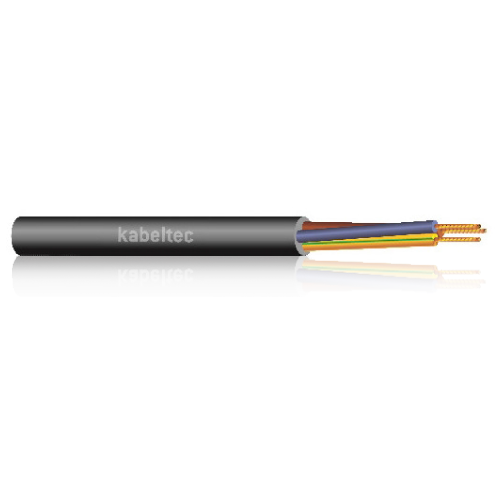

RZ1-K (AS)
CONSTRUCTION:
- Flexible bar copper, class 5
- XLPE Insulation
- Identification: colors
- 1x natural (uncolored)
- Up to 5 cores: blue, brown, black, grey, green/yellow
- 6 cores or more: black numbered with green/yellow
- Concentric stranded
- Bedding: Thermoplastic compound, LSZH
- Outer sheath: halogen free compound
- Outer sheath color: green
TECHNICAL DATA:
| Conductor Material: | bare copper |
| Conductor class: | Class 5 |
| Core insulation: | Cross-linked polyethylene insulation, Type DIX-3, acc. to VDE 0276-603 |
| Core identification: | up to 5 cores: colored, from 6 cores on: black cores numbered+ earth |
| Stranding: | |
| Outer sheath: | halogen free compound DMZ-E |
| Sheath colour: | green |
| Rated voltage [V]: | 0.6/1 (1.2) k |
| Testing voltage [V]: | 3500 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 5 x d |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -40°C up to +90°C |
| Working temp moved min/mac [C]: | -15°C up to +90°C |
| Temp at conductor max.: | |
| Burning behaviour: | EN 60332-1-2 |
| EN 50399 | |
| EN 61034-2 | |
| EN60754-1 | |
| Approvals: | water resistant: AD7 |
| oil and fuel resistant | |
| UV resistant | |
| CPR Cca-s1b,d1,a1 | |
| flame retardant EN60332-1-2/IEC 60332-1-2 | |
| fire retardant acc. to EN 50399 | |
| Low smoke emission(>60%) EN 61034-2, IEC 61034-1-2 | |
| halogen free EN 60754-1, IEC 60754-1 | |
| Corrositivity test EN 607542, IEC 60754-2 |
