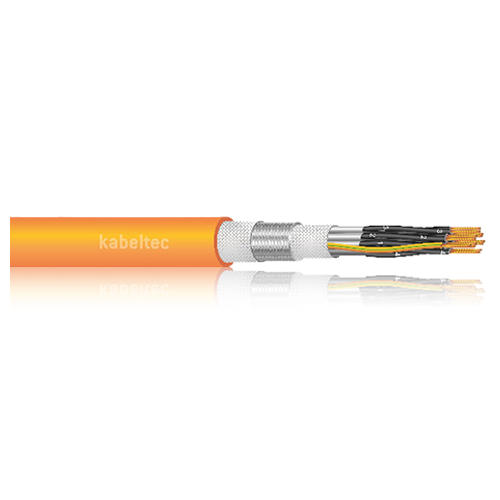

High-flexible servo cables suitable as connecting cables between servo controler and motor in machine tools and drag chains with medium mechanical stress. Cables are corresponding to Servomotors of Siemens.
Servo Cables for Siemens-Systems
for Siemens-Systeme, UL/CSA approved
- CONSTRUCTION:
- Core marking: supplying and signalling cables black with white imprint and
- Green/yellow conductor
- TPE insulation acc. to VDE 0250 part 1 tab.4
- PUR outer sheath, petrol, flame-retardant, non-adhesive
- Tinned copper screening
Technical Data:
| Conductor Material: | copper, Bare |
| Conductor class: | Class 6 acc. to VDE 0295 or IEC 60228 |
| Core insulation: | Polypropylene |
| Core identification: | Siemens Farbcode |
| Stranding: | |
| Outer sheath: | PUR |
| Sheath colour: | Orange (RAL 2003) |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 5 x d |
| Min. bending radius moved [xd]: | 7.5 x d |
| Working temp fixed min/max [C]: | -50°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1: flame-retardant and self- extinguishing |
| Approvals: | Oil resistance EN 60811-2-1 |
| Halogen-free DIN 60754 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 6FX8008-1BA35 | 4G35 + 2 x 1.50 0.6/1 kV | 29.80 | 159.50 | 201.50 |
| 6FX8008-1BA61 | 4G16 + 2 x 1.50 0.6/1 kV | 22.50 | 81.60 | 110.00 |
| 6FX8008-1BA25 | 4G25 + 2 x 1.5 0.6/1 kV | 26.20 | 117.20 | 149.00 |
| 6FX8008-1BA51 | 4G10 + 2 x 1.5 0.6/1 kV | 19.90 | 56.00 | 78.20 |
| 6FX8008-1BA41 | 4G6 + 2 x 1.50 0.6/1 kV | 16.80 | 36.50 | 54.00 |
| 6FX8008-1BA11 | 4G1.5 + 2 x 1.5 0.6/1 kV | 11.60 | 16.35 | 24.40 |
| 6FX8008-1BA21 | 4G2.5 + 2 x 1.5 0.6/1 kV | 13.40 | 19.00 | 31.00 |
| 6FX8008-1BA31 | 4G4 + 2 x 1.5 0.6/1 kV | 14.80 | 27.00 | 40.80 |
| 6FX8008-1BB11 | 4 x 1.5 0.6/1 kV | 9.00 | 9.60 | 15.90 |
| 6FX8008-1BA50 | 4G50 + 2 x 1.5 0.6/1 kV | 34.00 | 221.40 | 275.40 |
| 6FX8008-1BB21 | 4 x 2.50 0.6/1 kV | 10.60 | 13.50 | 23.50 |
| 6FX8008-1BB31 | 4 x 4 0.6/1 kV | 11.90 | 21.00 | 32.30 |
| 6FX8008-1BB41 | 4 x 6 0.6/1 kV | 14.70 | 31.50 | 46.40 |
| 6FX8008-1BB51 | 4 x 10 0.6/1 kV | 17.50 | 48.80 | 67.20 |
| 6FX8008-1BB61 | 4 x 16 0.6/1 kV | 21.60 | 76.90 | 108.90 |
| 6FX8008-1BB25 | 4 x 25 0.6/1 kV | 25.40 | 110.00 | 152.30 |
| 6FX8008-1BB35 | 4 x 35 0.6/1 kV | 29.70 | 151.00 | 208.00 |
| 6FX8008-1BB50 | 4 x 50 0.6/1 kV | 33.40 | 213.00 | 271.00 |
| 6FX8008-1BB70 | 4 x 70 0.6/1 kV | 42.50 | 302.50 | 412.30 |
