Suitable for application as connecting cable between encoder/resolver and servo controler in machine tools and drag chains with medium mechanical stress. Cables are corresponding to Servomotors of Siemens.
Siemens Servo Feedback

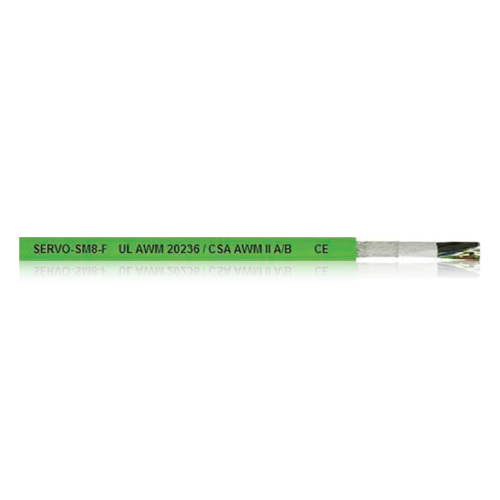

Drag chain cable for Siemens systems, UL/CSA approaved
- CONSTRUCTION:
- Stranded bare copper conductor extra flexible according to VDE 0295
- Core marking: supplying and signalling cables black with white imprint and
- green/yellow conductor
- TPE insulation acc. to VDE 0250 part 1 tab.4
- PUR outer sheath, flame-retardant, non-adhesive
- Tinned copper screening
Technical Data:
| Conductor Material: | Bare copper |
| Conductor class: | Class 6 according VDE 0295 resp IEC 60228 |
| Core insulation: | Polypropylen |
| Core identification: | Siemens colour code |
| Stranding: | |
| Outer sheath: | PUR |
| Sheath colour: | Green (RAL 6018) |
| Rated voltage [V]: | 300 |
| Testing voltage [V]: | |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 5 x d |
| Min. bending radius moved [xd]: | 7.5 x d |
| Working temp fixed min/max [C]: | -50°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1: flame-retardant |
| Approvals: | Halogen-free IEC 60754 |
| Oil-resistance EN 60811-2-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 6FX8008-1BD71 | 2 x 2 x 0.18 | 5.00 | 2.40 | 4.00 |
| 6FX8008-1BD31 | 3 x (2x0.14) + 2 x 0.5 | 9.00 | 7.40 | 10.90 |
| 6FX8008-1BD41 | 3x(2x0.14) + 4x0.14 + 2 x 0.5 | 8.90 | 6.60 | 10.60 |
| 6FX8008-1BD51 | 3x(2x0.14) + 4x0.14 + 2 x 0.5 +4 | 9.50 | 8.60 | 13.60 |
| 6FX8008-1BD61 | 4 x 2 x 0.18 | 6.40 | 3.50 | 5.70 |
| 6FX8008-1BD21 | 4 x 2 x 0.38 + 4 x 0.5 | 8.90 | 8.30 | 12.30 |
| 6FX8008-1BD11 | 8 x 2 x 0.18 | 7.80 | 5.40 | 8.80 |
| 6FX8008-1BD81 | 12 x 0.25 | 6.90 | 6.50 | 7.90 |
