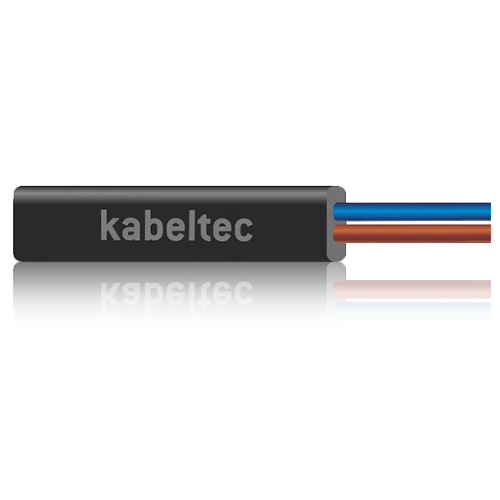

SIFL/PVC flat
Flexible flat silicone rubber insulated cable, heat resistant, pvc sheathed.
[INDEX:20201001SQ]
- Flexible copper class 5 CEI EN 60228
- Silicone rubber
- PVC TM3
- Max temp. of short circuit: 350 °C on the conductor 2×1,5:
- Average insulation thickness: 0,6mm
- Nominal conductor construction: 30×0,25mm
- Nominal core diameter: 2,7 +/-0,1mm
- Average sheath thickness: 0,7mm
- Max. conductor resistance at 20°C: 13,7 Ohm/km 2×2,5:
- Average insulation thickness: 0,7mm
- Nominal conductor construction: 50×0,25mm
- Nominal core diameter: 3,4 +/-0,1mm
- Average sheath thickness: 0,8mm
- Max. conductor resistance at 20°C: 8,21Ohm/km
TECHNICAL DATA:
| Conductor Material | tin plated copper |
| Conductor class | Class 5 |
| Core insulation | Silicone rubber |
| Core identification | blue, red |
| Stranding | |
| Outer sheath | PVC TM3 |
| Sheath colour | black |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2000V |
| Conductor resistance | see above |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 3 x d |
| Min. bending radius moved [xd] | 4 x d |
| Working temp fixed min/max [C] | |
| Working temp moved min/mac [C] | -30°C up to +90 on the conductor |
| Temp at conductor max | +350°C |
| Burning behaviour | |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| LP44020150 | 2 x 1.50 | 4,2x7,0 +/-0,2mm | 2.90 | 7.00 |
| LP44020250 | 2 x 2.50 | 5,0x8,4 +/-0,2mm | 4.80 | 13.50 |
