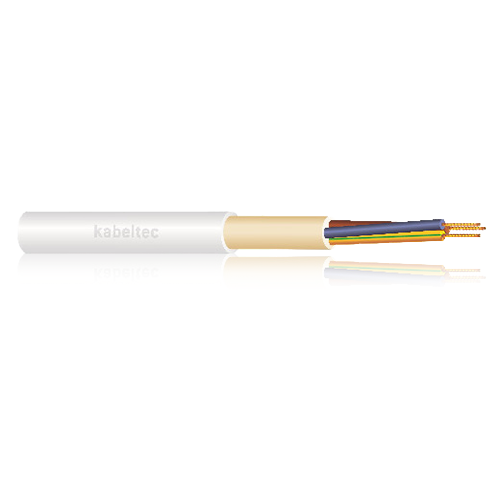

SIHF/ZM1 round
Flexible multicore heat resistant cable silicone rubber insulated, LSZH sheathed.
[INDEX:20201001SQ]
CONSTRUCTION:
- Colours code: CEI UNEL 00722 / HD 308
- Flexible copper class 5 CEI EN 60228
- Silicone rubber
- Thermoplastic halogen free type TM7
- Max temp. of short circuit: 350 °C on the conductor 3G1,5
- Average insulation thickness: 0,6mm, minimum 0,4,mm
- Nominal Core diameter: 2,75 +/-0,1mm
- Nominal conductor construction: 30×0,25mm
- Average sheath thickness: 0,9mm
- Max. conductor resistance at 20°C: 13,7 Ohm/km
TECHNICAL DATA:
| Conductor Material | tin plated copper |
| Conductor class | Class 5 |
| Core insulation | Silicone rubber |
| Core identification | blue, brown, green/yellow |
| Stranding | |
| Outer sheath | Thermoplastic halogen-free type TM 7 |
| Sheath colour | white |
| Rated voltage [V] | 300/300V |
| Testing voltage [V] | 2000V |
| Conductor resistance | 13,7 ohm/km at 20°C |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 3 x d |
| Min. bending radius moved [xd] | 4 x d |
| Working temp fixed min/max [C] | |
| Working temp moved min/mac [C] | -30°C up to +90 on the conductor |
| Temp at conductor max | |
| Burning behaviour | |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| LP44030150/LSZH | 3 x 1,5 | 7,9 +/-0,2mm | 4.32 | 9.80 |
