SJT
- Portable tools
- Motors
- Portable lights and lamps
SVT
- Vacuum cleaner
- Food mixers
- Office equipment

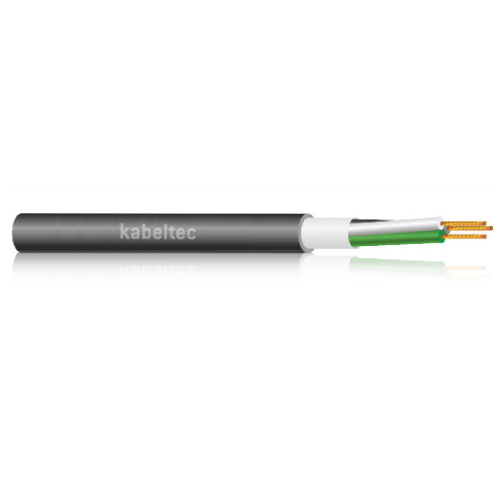

SJT und SVT
- Stranded bare copper per ASTM B-174
- Core insulation made of PVC
- Core marking:
- 2 cores: black, white
- 3 cores: black, white, green
- 4 cores: black, white, red, green
- Cores twisted in layers
- Outer jacket PVC, black or orange
- Oil-resistant
- Water-resistant
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | * |
| Core insulation: | PVC |
| Core identification: | 2 cores: black, white |
| 3 cores: black, white, green | |
| 4 cores: black, white, red, green | |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Black or orange |
| Rated voltage [V]: | 300 |
| Testing voltage [V]: | * |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | * |
| Min. bending radius moved [xd]: | * |
| Working temp fixed min/max [C]: | -20°C up to +60 |
| Working temp moved min/mac [C]: | -20°C up to +60 |
| Temp at conductor max.: | * |
| Burning behaviour: | * |
| Approvals: | – UL flexible cord – UL62 – OSHA – MSHA |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 780021600 | 2 x 16 AWG | 8.13 | 0.00 | 9.51 |
| 780021800 | 2 x 18 AWG | 7.37 | 0.00 | 7.13 |
| 821021800 | 2 x 18 AWG | 5.97 | 0.00 | 5.50 |
| 780031600 | 3 x 16 AWG | 8.64 | 0.00 | 12.33 |
| 780031800 | 3 x 18 AWG | 8.13 | 0.00 | 10.10 |
| 821031800 | 3 x 18 AWG | 6.48 | 0.00 | 5.79 |
