This cable has been created for areas of public events e.g. concerts,light- and sound events etc. for the protection of sound and light. Equipment in case of UV radiation.

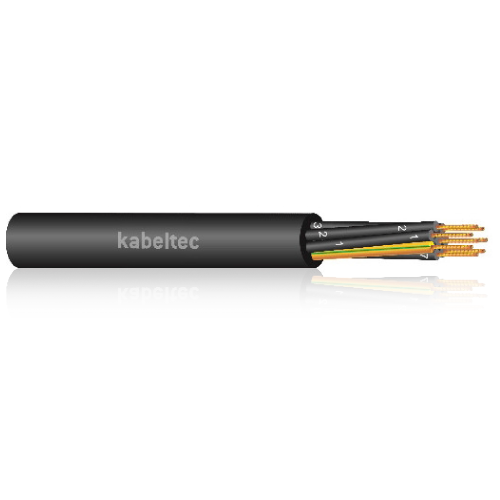

SOFTFLEX-JZ Black
Construction:
- PVC core insulation black with continuous white figure imprint
- Stranding acc. to VDE 0295, class 5
- Fine strands of bare copper wire
- Earth conductor green/yellow in outer layer ( inner layer on demand )
- PVC outer sheath black, RAL 9005
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 |
| Core insulation: | PVC |
| Core identification: | Consecutive white figure imprint |
| Stranding: | |
| Outer sheath: | PVC |
| Sheath colour: | Black (RAL 9005) |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 3500 |
| Conductor resistance: | |
| Insulation resistance: | > 20 MΩ/Km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 15 x d |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 10070150SOFT | 7 x 1.50 | 10.80 | 15.90 | |
| 10120150SOFT | 12 x 1.50 | 17.28 | 27.70 | |
| 10130150SOFT | 13 x 1.50 | 18.72 | 35.00 | |
| 10130250SOFT | 13 x 2.50 | 31.20 | 48.00 | |
| 102180150SOFT | 18 x 1.50 | 15.90 | 25.92 | 42.00 |
| 102180250SOFT | 18 x 2.50 | 19.50 | 43.20 | 61.10 |
| 10250150SOFT | 25 x 1.50 | 36.00 | 65.40 |
