Halogen-free reeling cable for heavy duty devices such as cables reels (also vertical operation), hoisting devices, conveyor facilities, mobile motors, rail motors and agricultural devices. For exeptional mechanical stress in dry, humid and wet rooms and for outdoor use.

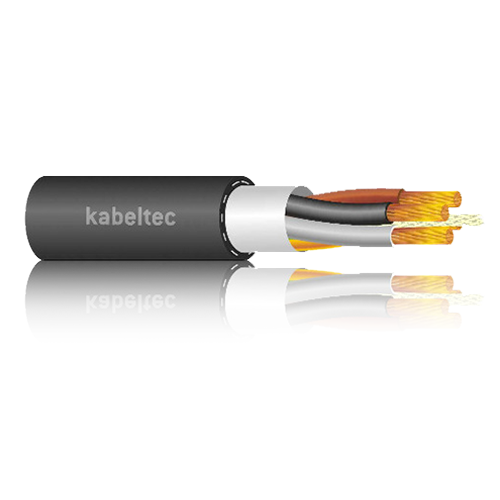

Trommelflex PU-HF
CONSTRUCTION:
– Notable protection to people and property value
– Free from lacquer damaging substances and silicone (during production)
– Halogen-free
– Reduced outer diameters and reduced weights
– For travelling speed up to 180m/min
– Textile weave vulcanised between inner and outer sheath
– Permanent tensile loading without supporting element max. 25 N/mm²
– Dimension 8 X 6 G 2,5 stranded in bundles, for use in spreader
– Suitable for permanent use in water (no drinking water) up to 50 m diving depth
– central textile element
– Polyurethan
TECHNICAL DATA:
Conductor Material: Bare copper conductor, several wires according IEC 60228
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation: Based on polyester
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires
white with black numerals with GNYE or DIN 47100
Stranding: cores stranded in layers
Outer sheath: Polyurthane
Sheath colour: black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 2500
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed [xd]: 6 x d
Min. bending radius moved [xd]: 6 x d
Working temp fixed min/max [C]: -50°C / + 90
Working temp moved min/mac [C]: -40°C / + 90
Temp at conductor max: +90°C
Burning behaviour: similar to IEC 60332-1
Approvals: EN 60811-2-1 oil- resistant
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 3 x (2x1) | 15.1-17.0 | 12.5 | 42 | |
| 2730040150 | 4 x 1.50 | 10.0 - 11.2 | 6.1 | 15.5 |
| 2730040250 | 4 x 2.50 | 11.1 - 12.3 | 9.9 | 20.8 |
| 2730040400 | 4 x 4 | 12.2 - 13.6 | 16 | 28.1 |
| 2730040600 | 4 x 6 | 13.3 - 14-9 | 24.1 | 37.2 |
| 2730041000 | 4 x 10 | 17.1 - 18.9 | 40.4 | 61.5 |
| 2730041600 | 4 x 16 | 19.9 - 22.1 | 64.5 | 92.4 |
| 4 x 16 + 2x (4x1.5) C | 24.7-26.3 | 84 | 113.9 | |
| 2730042500 | 4 x 25 | 22.9 - 25.5 | 100.5 | 122 |
| 2730043500 | 4 x 35 | 27.2 - 30.0 | 141.7 | 177.8 |
| 4 x 35 + 2x (4x1.5) C | 33.5-36.5 | 163.5 | 204.9 | |
| 2730050150 | 5 x 1.50 | 10.6 - 11.8 | 8.1 | 17.8 |
| 2730050250 | 5 x 2.50 | 11.8 - 13.0 | 12.5 | 23 |
| 2730050400 | 5 x 4 | 13.1 - 14.5 | 20 | 32.4 |
| 5 x 4 + 10x2.5 | 19.0-21.0 | 47.8 | 66 | |
| 2730050600 | 5 x 6 | 14.5 - 16.1 | 31.7 | 47.6 |
| 273005100 | 5 x 10 | 18.5 - 20.5 | 52.8 | 71.7 |
| 2730051600 | 5 x 16 | 21.8 - 24.2 | 81.6 | 102.2 |
| 6 x (2x1) C | 21.0-23.0 | 26.5 | 61.9 | |
| 2730070150 | 7 x 1.50 | 12.1 - 13.5 | 11.5 | 22 |
| 2730070250 | 7 x 2.50 | 13.3 - 14.7 | 18 | 31.5 |
| 8 x 6 x 2.50 | 42.2-45.2 | 115.2 | 259.3 | |
| 2730120150 | 12 x 1.50 | 15.4 - 17.0 | 19.6 | 36.3 |
| 2730120250 | 12 x 2.50 | 18.5 - 20.5 | 30.8 | 54.9 |
| 2730140400 | 14 x 4 | 22.7-25.3 | 61.6 | 91.9 |
| 2730180150 | 18 x 1.50 | 16.3 - 18.1 | 27.1 | 45.9 |
| 2730180250 | 18 x 2.50 | 18.5 - 20.5 | 45.1 | 67.9 |
| 19 x 2.50 + 5x1.5 (C) | 21.2-23.8 | 56.3 | 84.6 | |
| 2730240150 | 24 x 1.50 | 18.7 - 20.9 | 39.2 | 59 |
| 2730240250 | 24 x 2.50 | 21.5 - 22.9 | 61.6 | 87 |
| 25 x 1.50 + 5x1.5 (C) | 21.0-23.4 | 63.5 | 70.4 | |
| 2730300150 | 30 x 1.50 | 21.6 - 24.0 | 45 | 74.1 |
| 2730300250 | 30 x 2.50 | 25.4 - 28.2 | 77.1 | 108 |
| 2730360250 | 36 x 2.50 | 27.0 - 30.0 | 93 | 140.3 |
| 2730420150 | 42 x 1.50 | 25.0 - 28.0 | 63.3 | 92 |
