As control and energy feeding cable. For outdoor, indoor, stationary installation and water.

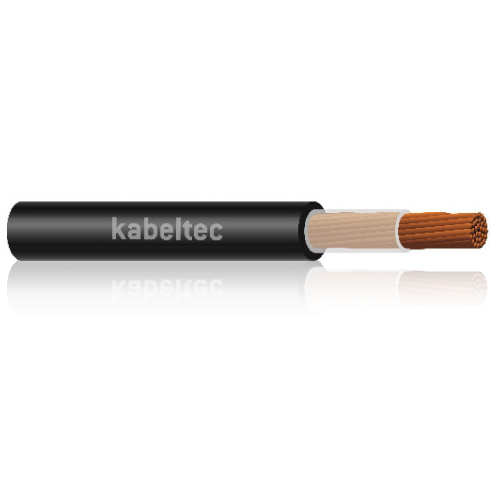

U-1000 R2V
Power cable according to french standard
CONSTRUCTION:
- Plain copper conductors, solid stranded
- Structure: acc. to IEC 228, class1 up to 4 mm², otherwise class 2
- Flame-retardant
- PVC filler or synthetic tape separator
- Outer sheath: PVC, black
- Insulation of cross-linked polyethylene
Outer marking
- U 1000 R2V NF-USE
- Core number X (or G) section
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Up to 4 mm² class 1, otherwise class 2
Core insulation: Cross-linked polyethylene
Core identification: 1 core: black
2 core: blue, brown
3 core: blue, brown, black, brown, black, grey
4 core: blue, brown, black, grey
5 core: blue, brown, black, grey, black
6 and more: black with white numbering
| Conductor Material | Copper, bare |
| Conductor class | Up to 4 mm² class 1, otherwise class 2 |
| Core insulation | Cross-linked polyethylene |
| Core identification | 1 core: black 2 core: blue, brown 3 core: blue, brown, black, brown, black, grey 4 core: blue, brown, black, grey 5 core: blue, brown, black, grey, black 6 and more: black with white numbering |
| Stranding | * |
| Outer sheath | PVC |
| Sheath colour | Black |
| Rated voltage [V] | 600 / 1000 |
| Testing voltage [V] | 2000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 12 x d |
| Min. bending radius moved [xd] | 15 x d |
| Working temp fixed min/max [C] | * |
| Working temp moved min/mac [C] | -5°C up to +70 |
| Temp at conductor max | +90°C in operation +250°C in case of short-circuit |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | NF C 32-321; IEC 502 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 833010150 | 1 x 1.50 | 6.00 | 1.44 | 5.00 |
| 833010250 | 1 x 2.50 | 6.50 | 2.40 | 6.00 |
| 833010400 | 1 x 4 | 7.00 | 3.80 | 8.00 |
| 833010600 | 1 x 6 | 7.50 | 5.80 | 10.00 |
| 833011000 | 1 x 10 | 8.50 | 9.60 | 15.00 |
| 833011600 | 1 x 16 | 9.50 | 15.40 | 21.00 |
| 833012500 | 1 x 25 | 11.00 | 24.00 | 31.00 |
| 833013500 | 1 x 35 | 12.00 | 33.60 | 40.00 |
| 833015000 | 1 x 50 | 13.50 | 48.00 | 53.00 |
| 833017000 | 1 x 70 | 15.50 | 67.20 | 73.00 |
| 833019500 | 1 x 95 | 17.50 | 91.20 | 99.00 |
| 8330112000 | 1 x 120 | 19.00 | 115.20 | 125.00 |
| 8330115000 | 1 x 150 | 21.50 | 144.00 | 155.00 |
| 8330118500 | 1 x 185 | 23.00 | 177.60 | 190.00 |
| 8330124000 | 1 x 240 | 26.00 | 230.40 | 245.00 |
| 8330130000 | 1 x 300 | 28.50 | 288.00 | 305.00 |
| 8330140000 | 1 x 400 | 32.00 | 384.00 | 410.00 |
| 8330150000 | 1 x 500 | 36.00 | 480.00 | 520.00 |
| 8330163000 | 1 x 630 | 41.00 | 604.80 | 655.00 |
| 833020150 | 2 x 1.50 | 9.50 | 2.90 | 13.00 |
| 833020250 | 2 x 2.50 | 10.50 | 4.80 | 16.00 |
| 833020400 | 2 x 4 | 11.50 | 7.70 | 21.00 |
| 833020600 | 2 x 6 | 13.00 | 11.50 | 27.50 |
| 833021000 | 2 x 10 | 15.00 | 19.20 | 39.00 |
| 833021600 | 2 x 16 | 16.50 | 30.70 | 54.00 |
| 833022500 | 2 x 25 | 18.00 | 48.00 | 81.00 |
| 833023500 | 2 x 35 | 21.40 | 0.00 | 105.90 |
| 833025000 | 2 x 50 | 24.40 | 0.00 | 140.50 |
| 833030150 | 3 x 1.50 | 10.00 | 4.30 | 17.20 |
| 833030250 | 3 x 2.50 | 11.00 | 7.20 | 18.50 |
| 833030400 | 3 x 4 | 12.00 | 11.50 | 24.00 |
| 833030600 | 3 x 6 | 14.00 | 17.30 | 33.00 |
| 833031000 | 3 x 10 | 16.00 | 28.80 | 48.00 |
| 833031600 | 3 x 16 | 17.50 | 46.10 | 67.00 |
| 833032500 | 3 x 25 | 21.00 | 72.00 | 105.00 |
| 833033500 | 3 x 35 | 23.50 | 100.80 | 140.00 |
| 833035000 | 3 x 50 | 26.50 | 144.00 | 180.00 |
| 833037000 | 3 x 70 | 31.00 | 201.60 | 255.00 |
| 833039500 | 3 x 95 | 35.00 | 273.60 | 340.00 |
| 8330312000 | 3 x 120 | 37.70 | 0.00 | 423.80 |
| 8330315000 | 3 x 150 | 43.00 | 432.00 | 525.00 |
| 8330318500 | 3 x 185 | 48.50 | 532.80 | 665.00 |
| 8330324000 | 3 x 240 | 54.50 | 691.20 | 855.00 |
| 833040150 | 4 x 1.50 | 11.00 | 5.50 | 17.00 |
| 833040250 | 4 x 2.50 | 12.00 | 9.60 | 21.50 |
| 833040400 | 4 x 4 | 13.00 | 15.40 | 29.00 |
| 833040600 | 4 x 6 | 15.00 | 23.00 | 40.00 |
| 833041000 | 4 x 10 | 17.00 | 38.40 | 59.00 |
| 833041600 | 4 x 16 | 19.00 | 61.40 | 84.00 |
| 833042500 | 4 x 25 | 23.00 | 96.00 | 130.00 |
| 833043500 | 4 x 35 | 26.00 | 134.40 | 175.00 |
| 833045000 | 4 x 50 | 29.50 | 192.00 | 230.00 |
| 833047000 | 4 x 70 | 34.50 | 268.80 | 325.00 |
| 833049500 | 4 x 95 | 39.50 | 364.80 | 435.00 |
| 8330412000 | 4 x 120 | 42.50 | 460.80 | 540.00 |
| 8330415000 | 4 x 150 | 49.00 | 576.00 | 685.00 |
| 8330418500 | 4 x 185 | 54.00 | 710.40 | 850.00 |
| 8330424000 | 4 x 240 | 60.50 | 921.60 | 1100.00 |
| 8330430000 | 4 x 300 | 66.50 | 1152.00 | 1400.00 |
| 833050150 | 5 x 1.50 | 12.00 | 7.20 | 20.00 |
| 833050250 | 5 x 2.50 | 13.00 | 12.00 | 26.00 |
| 833050400 | 5 x 4 | 14.00 | 19.20 | 34.00 |
| 833050600 | 5 x 6 | 15.00 | 28.80 | 48.00 |
| 833051000 | 5 x 10 | 19.00 | 48.00 | 72.00 |
| 833051600 | 5 x 16 | 20.50 | 76.80 | 105.00 |
| 833052500 | 5 x 25 | 25.50 | 120.00 | 160.00 |
| 833070150 | 7 x 1.50 | 12.50 | 10.10 | 24.00 |
| 833070250 | 7 x 2.50 | 14.00 | 16.80 | 32.00 |
| 833070400 | 7 x 4 | 15.00 | 26.90 | 43.00 |
| 833080150 | 8 x 1.50 | 14.50 | 11.50 | 30.00 |
| 833080250 | 8 x 2.50 | 16.00 | 19.20 | 40.00 |
| 833080400 | 8 x 4 | 17.50 | 30.70 | 54.00 |
| 833100150 | 10 x 1.50 | 16.00 | 14.40 | 35.00 |
| 833100250 | 10 x 2.50 | 17.50 | 24.00 | 46.00 |
| 833100400 | 10 x 4 | 19.50 | 38.40 | 63.00 |
| 833120150 | 12 x 1.50 | 16.00 | 17.30 | 36.00 |
| 833120250 | 12 x 2.50 | 17.50 | 28.80 | 49.00 |
| 833120400 | 12 x 4 | 19.50 | 46.10 | 68.00 |
| 833140150 | 14 x 1.50 | 16.50 | 20.20 | 40.00 |
| 833140250 | 14 x 2.50 | 18.50 | 33.60 | 55.00 |
| 833140400 | 14 x 4 | 20.50 | 53.80 | 78.00 |
| 833190150 | 19 x 1.50 | 18.50 | 27.40 | 51.00 |
| 833190250 | 19 x 2.50 | 20.50 | 45.60 | 70.00 |
| 833190400 | 19 x 4 | 22.50 | 72.90 | 105.00 |
| 833240150 | 24 x 1.50 | 21.00 | 34.60 | 65.00 |
| 833240250 | 24 x 2.50 | 23.50 | 57.60 | 90.00 |
| 833270150 | 27 x 1.50 | 21.50 | 38.90 | 68.00 |
| 833270250 | 27 x 2.50 | 24.00 | 64.80 | 95.00 |
| 833300150 | 30 x 1.50 | 22.50 | 43.20 | 74.00 |
| 833300250 | 30 x 2.50 | 25.00 | 72.00 | 105.00 |
| 833370150 | 37 x 1.50 | 24.00 | 53.30 | 99.00 |
| 833370250 | 37 x 2.50 | 27.00 | 88.80 | 125.00 |
