Suitable for wiring in fixed installations of electric and electronic components in switchgear cabinets, as well as outside switchgear cabinets if installed in a protected way.

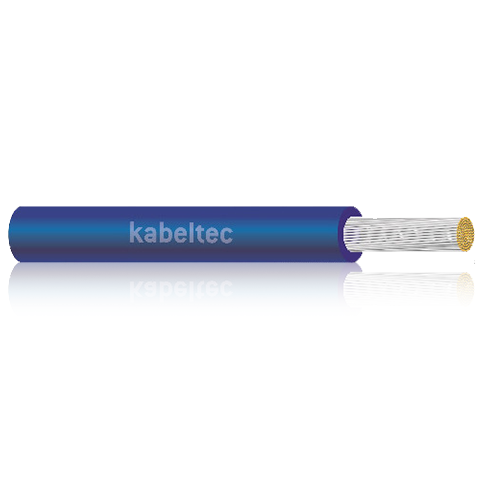

UL/CSA Style 1430/1431
Single cores (PVC)
CONSTRUCTION:
- Strands of copper wire
- PVC insulation (style 1430/1431 cross linked)
- Single core marked with type
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | |
| Core insulation | crosslinked PVC |
| Core identification | |
| Stranding | |
| Outer sheath | |
| Sheath colour | |
| Rated voltage [V] | Type 1430: 300 V Type 1431: 600 |
| Testing voltage [V] | 3000 |
| Conductor resistance | max. 34,00 Ohm/km at 20°C max. 33,00 Ohm/km at 20°C |
| Insulation resistance | min. 20 MΩ x km at 20°C |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | |
| Min. bending radius moved [xd] | |
| Working temp fixed min/max [C] | -30°C up to +105°C |
| Working temp moved min/mac [C] | -5°C up to +105 |
| Temp at conductor max | |
| Burning behaviour | flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT-1 |
| Approvals | UL 758-AWM/CSA C22.2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 73..1600 | 1 x 16 AWG | 2.36 | 1.35 | 1.85 |
| 73..1800 | 1 x 18 AWG | 2.19 | 0.85 | 1.25 |
| 73..2000 | 1 x 20 AWG | 1.94 | 0.55 | 0.85 |
| 73..2200 | 1 x 22 AWG | 1.60 | 0.33 | 0.60 |
| 73..2400 | 1 x 24 AWG | 1.50 | 0.21 | 0.43 |
| 73..2600 | 1 x 26 AWG | 1.37 | 0.14 | 0.32 |
